In 2006 we were introduced to Dr. Ed Ashby by the custom bowyer OL Adcock. After our first meeting, we really started diving into Doc's arrow lethality research. Like so many other bowhunters who read Doc's research for the first time - we had an "Aha Moment."

Dr. Ashby's research touched on so many things we already kind of intuitively knew but also explained so many concepts we had never thought of. Since that time, GrizzlyStik has obsessively addressed and built each of Dr. Ashby's top 12 arrow penetration factors into our systems.

These 12 arrow penetration factors were strenuously researched, tested, and ranked in order of importance by Dr. Ashby. All 12 points are insights gained from Dr. Ashby's 30 years of empirical bowhunting research. (Note that #10 - Edge Bevel - jumps up to near the top of the list if a bone is encountered.)


Since 2007, GrizzlyStik has been obsessively researching, building, and refining each of Dr. Ashby's 12 points into all of our arrow and broadhead systems. No one point is the silver bullet for arrow penetration. Each point enhances the next point until you reach a compounding effect of arrow penetration.


Ashby Rule #1 - Structural Integrity

The most important factor of arrow penetration is structural integrity. If any component of your arrow fails penetration either completely stops or is greatly reduced.

GrizzlyStik broadheads are tempered to eliminate tip curling and broadhead twisting. Our Ashby is made for ultimate strength and durability. GrizzlyStik tapered carbon arrows are made with our Mitsubishi 3K woven carbon cloth to eliminate any weak spots. They're thickest and strongest right behind the head, exactly where most other carbon arrows fail.


Ashby Rule #2 - Arrow Flight

If an arrow is not flying perfectly it's wasting valuable energy that could have contributed to penetration. If an arrow impacts before it has achieved perfect flight, energy is wasted that could have contributed to forward momentum and penetration. Perfect flight is crucial, you must achieve it no matter what the cost. Pay close attention to the other factors too though or you may find yourself shooting arrows that fly perfectly but can't penetrate well at all.

GrizzlyStiks are the ONLY full-length tapered carbon arrow available. Our full-length taper recovers from the archer's paradox faster than any parallel arrow AND upon impact, the stiff front end resists bending and drives the broadhead through whatever gets in its way


Broken Moose scapula from Single Bevel Broadhead


Ashby Rule #3 - Arrow FOC (Forward of Center)

Tests have shown that EFOC, defined as 19% - 30% forward of center, and Ultra EFOC, defined as over 30% forward of center enhance penetration from 40% to 60+%.

The full-length taper of GrizzlyStik carbon arrows builds in EFOC and with our brass inserts, insert accessory weights, and broadheads up to 315 grains, you can customize your FOC to suit your own needs.


Ashby Rule #4 - Broadhead Mechanical Advantage

Long narrow broadheads have an advantage over shorter wider heads. It takes less energy to push them through an animal. That is their mechanical advantage. This is second only to EFOC and Ultra EFOC as a penetration-enhancing factor.

Our Ashby broadhead is designed as close to the 3:1 ratio as strength and durability would allow. It has the highest mechanical advantage of any GrizzlyStik broadhead with the heavier Samurai series broadheads following close behind.


GrizzlyStik Maasai 125 Single Bevel Broadhead Elk Penetration


Ashby Rule #5 - Shaft Diameter to Ferrule Diameter Ratio

You'll lose up to 30% of your penetration potential if the shaft is larger than the ferrule where they meet. It's best to be slightly smaller in diameter than the ferrule of the broadhead.

GrizzlyStik arrows are equal to or less than the diameter of all the GrizzlyStik broadhead ferrules.


Ashby Rule #6 - Arrow Mass or Weight

Heavier arrows absorb more energy from the bow at the shot & they carry their momentum better than lighter arrows so they penetrate better. Bowhunters should use the heaviest arrow that will deliver a trajectory they can live with.

The GrizzlyStik system of heavy full-length tapered carbon arrows and broadheads up to 350 grains allows you to customize your arrow to reach your target mass weight for optimum penetration.



Ashby Rule #7 - Broadhead Edge Finish

Broadhead edges that have been honed and stropped smooth have a 26% advantage over smooth filed edges and a 60% advantage over the coarse "serrated" Howard Hill edge.

All GrizzlyStik broadheads go through a final buffing process at the factory to make the edges as smooth and as sharp as possible.


Ashby Rule #8 - Shaft Profile

On all shots, tapered shafts show an 8% penetration gain over parallel shafts and a 15% gain over barrel tapered shafts.

GrizzlyStik carbon arrows are the ONLY full-length tapered shaft on the market. That gives us an 8%-15% penetration advantage over all the other shafts out there.


Ashby 350 Grain Broadhead Breaking Scapula


Ashby Rule #9 - Broadhead/Arrow Silhouette

Smooth transitions and slick arrow finishes greatly enhance the penetration potential of your broadhead/arrow combination. Broadhead ferrules with bumps or any irregular surfaces impede penetration, especially in bone.

The transition of our forged broadhead (Ashby 350) is totally smooth. Even our two-piece broadheads, the Samurai and the Maasai have a blade to ferrule transitions that are hard to beat. GrizzlyStik arrows have a very smooth finish which enhances penetration in all tissues. (This smooth finish is superior when encountering animals - but will stick into foam targets.)


Ashby Rule #10 - Type of Edge Bevel

Only if no bone is encountered does this factor rank 10th. If a bone is hit, and more often than not it is, this factor jumps up toward the top of the list. If you can?t get through the bone, penetration stops. The powerful rotational force of single-bevel broadheads splits bone. Single-bevel broadheads regularly turn what would be a wound into a killing shot. Note: Your arrow must be of sufficient weight and strength to drive the broadhead through and withstand the forces involved in breaching the bone.

All GrizzlyStik broadheads except the Silver Flames are single-beveled. Their twisting motion splits bone allowing our tapered GrizzlyStik arrows to slip through and continue penetrating.

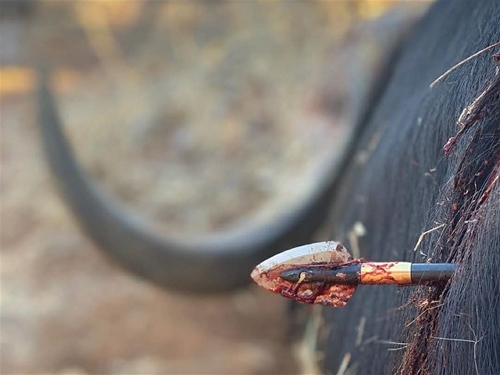

GrizzlyStik Maasai 200 Single Bevel Broadhead Penetration on Cape Buffalo


Ashby Rule #11 - Tip Design

In all testing where a bone was encountered the Tanto tip performed best. It resisted damage and skipped less than any other tip design.

All GrizzlyStik broadheads except the Silver Flames carry sharpened Tanto Tips.


Ashby Rule #12 - Arrow Mass 650 and Above

When soft tissue is hit, this factor is ranked last in importance BUT if a heavy bone is hit it will be near the top of the list. Heavy bone is almost impossible to breach unless you have 650 grains or better in mass arrow weight.

With the GrizzlyStik broadhead/arrow system, you can reach the 650-grain mark with any of our arrow and broadhead systems.
